All Categories  > Components & Accessories  > Power Protection Devices  > Rack-Mountable UPS >  APC Smart-UPS On-Line 10000VA RM - UPS - 10 kW - 10000 VA


APC

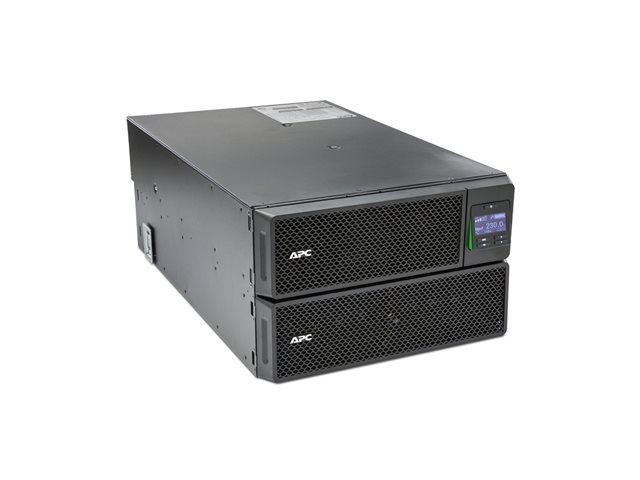

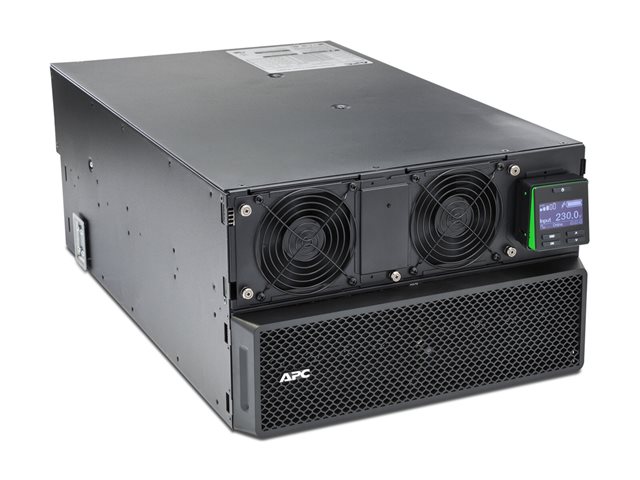

APC Smart-UPS On-Line 10000VA RM - UPS - 10 kW - 10000 VA
High density, double-conversion on-line power protection with scalable runtime.

Sku: EW9585
Price: $10,450.00





Part Number SRT10KRMXLT
SKU EW9585
UNSPSC Code 39121017
Returnable No
Usually Ships Call for Availability
Billable Weight 297.75   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Designed For P/N: AR2487G, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3300W, AR3305SP, AR3305W, AR3340G, AR3340W, AR3355SP, AR3355W, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A, SMX2000LVUS, SRT1000RMXLA, SRT5KRMTF, SRT5KTF
Manufacturer Warranty 3-year warranty
Environmental Standards ENERGY STAR
Dimensions (WxDxH) 17 in x 28.1 in x 10.4 in
Color Black
Networking Ethernet 10/100, RS-232, USB
Run Time (Up To) 3.7 min at full load
Battery Lead acid
Output connectors 1 x hardwire 3-wire (1PH + N + G) ¦ 4 x power NEMA L6-20 ¦ 2 x power NEMA L6-30
Input Connectors Hardwire 3-wire (1PH + N + G)
Power Capacity 10 kW / 10000 VA
Output Voltage AC 208 V ± 2%
Input Voltage AC 208 V
Weight 245.99 lbs
Rack Size 6U
Device Type UPS - rack-mountable
Product Description APC Smart-UPS On-Line 10000VA RM - UPS - 10 kW - 10000 VA

Extended Specifications


General
  Device Type UPS - rack-mountable
  Height (Rack Units) 6U
  Color Black
Power Device
  UPS Technology On-line
  Input Voltage AC 208 V
  Input Voltage Range AC 160 - 275 V
  Input Voltage Range (Adjustable) AC 100 - 275 V
  Frequency Provided 50/60 Hz ± 3Hz
  Frequency Required 40 - 70 Hz
  Input Connectors Hardwire 3-wire (1PH + N + G)
  Power Output Connectors Details 1 x hardwire 3-wire (1PH + N + G) ¦ 4 x power NEMA L6-20 ¦ 2 x power NEMA L6-30
  Output Voltage AC 208 V ± 2% - 50/60 Hz
  Power Capacity 10 kW / 10000 VA
  Output Waveform Sinewave
  Surge Suppression Yes
  Surge Energy Rating 480 Joules
  Efficiency 98%
Battery
  Technology Lead acid
  Recharge Time 1.5 hours
  Features Maintenance free, sealed, leak-proof
Networking
  Remote Management Interface Ethernet 10/100, RS-232, USB
Expansion / Connectivity
  Interfaces 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45
  Expansion Slots 1 (total) / 1 (free) x SmartSlot
Miscellaneous
  Features Audible alarm, LCD display
  Compliant Standards NOM, UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20
Sustainability Information
  ENERGY STAR Yes
Manufacturer Warranty
  Service & Support Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
  Min Operating Temperature 32 °F
  Max Operating Temperature 104 °F
  Humidity Range Operating 0 - 95% (non-condensing)
  Sound Emission 55 dBA
Dimensions & Weight
  Width 17 in
  Depth 28.1 in
  Height 10.4 in
  Weight 245.99 lbs
Dimensions & Weight (Shipping)
  Shipping Width 23.6 in
  Shipping Depth 3.3 ft
  Shipping Height 18.1 in
  Shipping Weight 286 lbs
Compatibility Information
  Designed For P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR3810, AR3812, AR3814, AR7007, AR7050, AR7057, AR8135BLK, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A, SMX2000LVNC, SMX2000LVUS, SMX3000HVT, SRT1000RMXLA, SRT5KRMTF, SRT5KTF, SU2200R3X167
