All Categories  > Components & Accessories  > Power Protection Devices  > Rack-Mountable UPS >  APC Smart-UPS Li-Ion 500VA Short Depth - UPS - 400 Watt - 500 VA - with APC UPS Network Management Card AP9631


APC

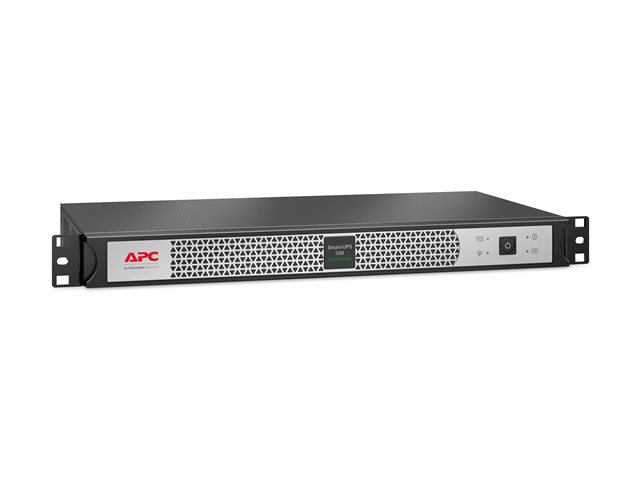

APC Smart-UPS Li-Ion 500VA Short Depth - UPS - 400 Watt - 500 VA - with APC UPS Network Management Card AP9631
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.

Sku: FA0929
Price: $896.00





Part Number SCL500RM1UNC
SKU FA0929
UNSPSC Code 39121011
Returnable No
Usually Ships Next Day
Billable Weight 13.13   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Designed For P/N: AR3105W, AR3140G, AR3155W, AR3305W, AR3340G, AR3355W, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SCL500RM1UC, SMTL1000RM2UC, SMTL750RM2UC, SMX2000LVNCUS, SMX3000LVUS
Bundled with APC UPS Network Management Card AP9631
Manufacturer Warranty 5-year warranty
Dimensions (WxDxH) 17 in x 9.1 in x 1.7 in
Color Black, silver
Remote Management Protocol SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2
Networking Ethernet 10/100, RS-232, USB
Battery Lithium ion
Output connectors 4 x power NEMA 5-15R
Input Connectors Power NEMA 5-15P
Power Capacity 400 Watt / 500 VA
Output Voltage AC 120 V ± 5%
Input Voltage AC 120 V
Weight 8.16 lbs
Rack Size 1U
Device Type UPS - rack-mountable
Product Description APC Smart-UPS Li-Ion 500VA Short Depth - UPS - 400 Watt - 500 VA - with APC UPS Network Management Card AP9631

Extended Specifications


General
  Device Type UPS - rack-mountable
  Height (Rack Units) 1U
  Color Black, silver
  Bundled with APC UPS Network Management Card AP9631
Power Device
  UPS Technology Line interactive
  Input Voltage AC 120 V
  Input Voltage Range AC 92 - 139 V
  Frequency Provided 50/60 Hz ± 3Hz
  Frequency Required 50/60 Hz ± 3Hz
  Input Connectors Power NEMA 5-15P
  Power Output Connectors Details 4 x power NEMA 5-15R
  Output Voltage AC 120 V ± 5% - 50/60 Hz
  Power Capacity 400 Watt / 500 VA
  Output Waveform Sinewave
  Surge Suppression Yes
  Efficiency 96% at 10% Load
Battery
  Technology Lithium ion
Networking
  Remote Management Interface Ethernet 10/100, RS-232, USB
  Remote Management Protocol SNMP 1, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2
Expansion / Connectivity
  Interfaces 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (Ethernet) - RJ-45
  Expansion Slots 1 (total) / 0 (free) x SmartSlot
Miscellaneous
  Features Audible alarm, LCD display
  Compliant Standards UL 1449, IP20, CSA C22.2 No. 107.1, FCC Part 15 A, NOM, UL 1778, RoHS, REACH
Manufacturer Warranty
  Service & Support Limited warranty - 5 years
Environmental Parameters
  Min Operating Temperature 32 °F
  Max Operating Temperature 104 °F
  Humidity Range Operating 0 - 95% (non-condensing)
  Sound Emission 45 dBA
Dimensions & Weight
  Width 17 in
  Depth 9.1 in
  Height 1.7 in
  Weight 8.16 lbs
Dimensions & Weight (Shipping)
  Shipping Weight 9.26 lbs
Compatibility Information
  Designed For P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF102BLK, ACF400, ACF600, AP5017, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7050, NBWL0356A, SCL500RM1UC, SMC1500-2U, SMTL1000RM2UC, SMTL750RM2UC, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX3000LVUS, SU2200R3X167
