All Categories  > Components & Accessories  > Power Protection Devices  > Rack-Mountable UPS >  APC Smart-UPS SRT 5000VA RM - UPS - 4250 Watt - 5000 VA


APC

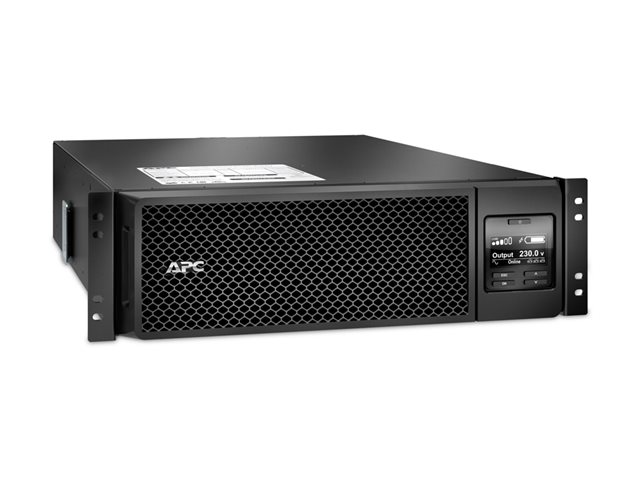

APC Smart-UPS SRT 5000VA RM - UPS - 4250 Watt - 5000 VA
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA L6-30P input, 4x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.

Sku: FC1916
Price: $9,295.00





Part Number SRT5KRMXLT-IEC
SKU FC1916
UNSPSC Code 39121011
Returnable No
Usually Ships Call for Availability
Billable Weight 127.92   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Designed For P/N: AR2487G, AR3100W, AR3105SP, AR3105W, AR3140G, AR3140W, AR3150W, AR3155SP, AR3155W, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR4000MVX429, AR4000MVX432, AR4038IX432, NBWL0356A, SMX2000LVUS, SRT1000RMXLA-NC, SRT1500RMXLA
Manufacturer Warranty 3-year warranty
Environmental Standards ENERGY STAR
Dimensions (WxDxH) 17 in x 28.3 in x 5.1 in
Color Black
Included Accessories Rack mounting rails
Remote Management Protocol SNMP, HTTP
Networking Ethernet 10/100, USB
Run Time (Up To) 4 min at full load
Battery Lead acid
Output connectors 4 x power IEC 60320 C13 ¦ 2 x IEC jumper ¦ 4 x power IEC 60320 C19
Input Connectors 1 x power NEMA L6-30
Power Capacity 4250 Watt / 5000 VA
Output Voltage AC 208/220/240 V ± 3%
Input Voltage AC 208/220/240 V
Weight 122.99 lbs
Rack Size 3U
Device Type UPS - rack-mountable
Product Description APC Smart-UPS SRT 5000VA RM - UPS - 4250 Watt - 5000 VA

Extended Specifications


General
  Device Type UPS - rack-mountable
  Height (Rack Units) 3U
  Color Black
Power Device
  UPS Technology On-line
  Input Voltage AC 208/220/240 V
  Input Voltage Range AC 160 - 275 V
  Frequency Provided 50/60 Hz
  Frequency Required 40 - 70 Hz
  Input Connectors 1 x power NEMA L6-30
  Power Output Connectors Details 4 x power IEC 60320 C13 ¦ 2 x IEC jumper ¦ 4 x power IEC 60320 C19
  Output Voltage AC 208/220/240 V ± 3% - 50/60 Hz
  Power Capacity 4250 Watt / 5000 VA
  Output Waveform Sinewave
  Surge Suppression Yes
  Surge Energy Rating 480 Joules
  Efficiency 91.2% at 25% Load, 93.2% at 50% Load, 93.4% at 75% Load, 93.2% at 100% Load
Battery
  Technology Lead acid
  Run Time (Up To) 4 min at full load ¦ 13 min at half load
  Recharge Time 1.5 hours
  Features Maintenance free, sealed, leak-proof
Networking
  Remote Management Interface Ethernet 10/100, USB
  Remote Management Protocol SNMP, HTTP
Expansion / Connectivity
  Interfaces 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x serial - RJ-45
  Expansion Slots 1 (total) / 1 (free) x SmartSlot
Miscellaneous
  Included Accessories Rack mounting rails
  Cables Included Power cable 10 ft ¦ USB cable - external
  Rack Mounting Kit Included
  Features Audible alarm, LCD display, internal bypass
  Compliant Standards UL 1778, RoHS, FCC Part 15 A, REACH, CSA C22.2 No. 107.3, IP20
Sustainability Information
  ENERGY STAR Yes
Manufacturer Warranty
  Service & Support Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
  Min Operating Temperature 32 °F
  Max Operating Temperature 104 °F
  Humidity Range Operating 0 - 95% (non-condensing)
  Sound Emission 55 dBA
Dimensions & Weight
  Width 17 in
  Depth 28.3 in
  Height 5.1 in
  Weight 122.99 lbs
Dimensions & Weight (Shipping)
  Shipping Width 24 in
  Shipping Depth 37.8 in
  Shipping Height 13 in
  Shipping Weight 150 lbs
Compatibility Information
  Designed For P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SMX2000LVNC, SMX2000LVUS, SRT1000RMXLA-NC, SRT1500RMXLA
