Product Details

All Categories  > Systems  > Servers  > Blade Servers >  Cisco UCS 210c M7 - compute node no CPU - 0 GB - no HDD


Cisco

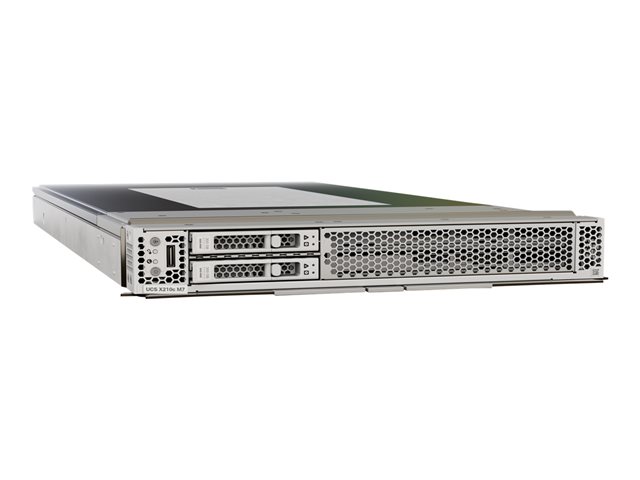

Cisco UCS 210c M7 - compute node no CPU - 0 GB - no HDD
The Cisco UCS X-Series Modular System simplifies your data center, adapting to the unpredictable needs of modern applications while also providing for traditional scale-out and enterprise workloads. It reduces the number of server types to maintain, helping to improve operational efficiency and agility as it helps reduce complexity. Powered by the Cisco Intersight cloud-operations platform, it shifts your thinking from administrative details to business outcomes - with hybrid-cloud infrastructure that is assembled from the cloud, shaped to your workloads, and continuously optimized.

Sku: GA2784
Price: $6,377.00





Part Number UCSX-210C-M7-U
SKU GA2784
UNSPSC Code 43211501
Returnable No
Usually Ships Call for Availability
Billable Weight 13.36   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Weight 12.85 lbs
Dimensions (WxDxH) 11.3 in x 23.7 in x 1.8 in
Software Included Cisco Intersight
Video Memory 16 MB
Graphics Controller Matrox G200e
Optical Storage No optical drive
Hard Drive No HDD
Server Storage Bays Hot-swap 2.5"
Storage Controller RAID (SATA 6Gb/s)
RAM 0 GB (installed) / 8 TB (max) - DDR5 SDRAM - ECC
Processor No CPU
Server Scalability 2-way
Type Server - compute node
Product Description Cisco UCS 210c M7 - compute node no CPU - 0 GB - no HDD

Extended Specifications


General
  Type Server
  Product Form Factor Compute node
  Server Scalability 2-way
  Internal Bays Qty 2
  Front Accessible Bays Qty 6
  Hot-Swap Bays Qty 6
Processor / Chipset
  CPU No CPU
  Max CPU Qty 2
  CPU Upgradability Upgradable
  Chipset Type Intel C741
RAM
  Installed Size 0 GB (installed) / 8 TB (max)
  Technology DDR5 SDRAM - ECC
  Rated Memory Speed 4800 MHz
  Form Factor DIMM 288-pin
  Slots 32 (total) / 32 (empty)
  Features Registered
Hard Drive
  Type No HDD
Storage Controller
  Type RAID
  Controller Interface Type SATA 6Gb/s
  RAID Level RAID 1, JBOD
Optical Storage
  Type No optical drive
Monitor
  Monitor Type None.
Graphics Controller
  Graphics Processor Matrox G200e
  Video Memory 16 MB
  Video Interfaces OCuLink
Networking
  Remote Management Controller Cisco Integrated Management Controller, Intel Baseboard Management Controller (BMC)
Expansion / Connectivity
  Bays 6 (total) / 6 (free) x hot-swap 2.5"
  Slots 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x Mezzanine card ¦ 2 (total) / 2 (free) x M.2 Card
  Interfaces 1 x OCuLink (1 front) (console)
Miscellaneous
  Compliant Standards ACPI 6.2, WEEE
Operating System / Software
  Software Cisco Intersight
Dimensions & Weight
  Width 11.3 in
  Depth 23.7 in
  Height 1.8 in
  Weight 12.85 lbs
Environmental Parameters
  Min Operating Temperature 50 °F
  Max Operating Temperature 95 °F
  Humidity Range Operating 5 - 90% (non-condensing)
