All Categories  > Components & Accessories  > KVM  > KVM Console >  Raritan KVM Drawer T1700G2-LED - KVM console - Full HD (1080p) - 17.3"


Raritan

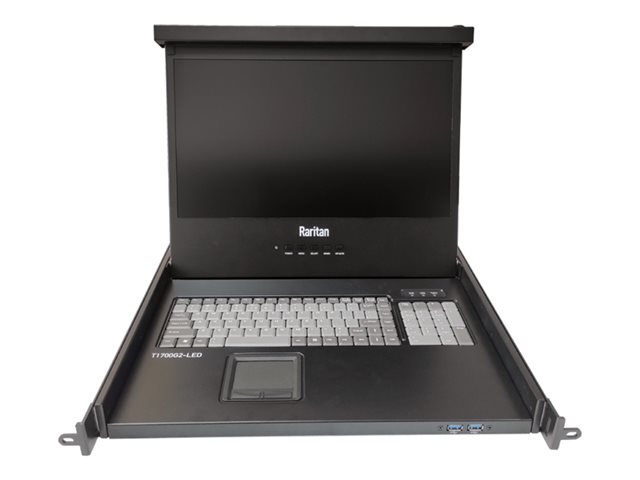

Raritan KVM Drawer T1700G2-LED - KVM console - Full HD (1080p) - 17.3"
The Raritan KVM Drawer Model T1700G2-LED combines functionality and user-friendly design, providing a solution for efficient control of multiple servers in a rack-mountable format. With a 17.3-inch widescreen display featuring Full HD 1920 x 1080 resolution, this console ensures clear imaging for any task. Its LED backlight and brightness of 300 cd/m2 enhance visibility in various lighting conditions, allowing for smooth operations. Equipped with input options such as HDMI, DVI, DisplayPort, and VGA, the KVM Drawer accommodates different connectivity needs. The TFT active matrix technology delivers color support of 16.7 million colors, making it easy to navigate and manage system settings. Additionally, the built-in keyboard and touchpad provide convenient control, while the auto on/off feature helps to conserve energy when not in use. Designed for reliable operation within a temperature range of 0°C to 40°C and with a humidity tolerance of 5 - 90%, the Raritan KVM Drawer is engineered for durability and efficiency in diverse environments.

Sku: GK8368
Price: $1,391.00





Part Number T1700G2-LED
SKU GK8368
UNSPSC Code 43211902
Returnable No
Usually Ships Call for Availability .
Billable Weight 27.52   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Manufacturer Warranty 2-year warranty
Compliant Standards DDC, DDC-2, DDC-2B
Weight 26.46 lbs
Height (Rack Units) 1U
Dimensions (WxDxH) 19 in x 20.9 in x 1.7 in
Input Connectors HDMI, DVI-D, DisplayPort
Color Support 16.7 million colors
Contrast Ratio 650:1
Brightness 300 cd/m²
Native Resolution Full HD (1080p) 1920 x 1080 at 60 Hz
Features Keyboard, touchpad
Device Type KVM console - 17.3"
Product Description Raritan KVM Drawer T1700G2-LED - KVM console - Full HD (1080p) - 17.3"

Extended Specifications


General
  Display Type KVM console / TFT active matrix
  Diagonal Size 17.3"
  Native Resolution Full HD (1080p) 1920 x 1080 at 60 Hz
  Brightness 300 cd/m²
  Contrast Ratio 650:1
  Color Support 16.7 million colors
  Backlight Technology LED backlight
  Features CCFL edgelight system
  Dimensions (WxDxH) 19 in x 20.9 in x 1.7 in
  Height (Rack Units) 1U
  Weight 26.46 lbs
Input

  Type Keyboard, touchpad
Connectivity

  Interfaces VGA ¦ DVI-D ¦ USB 3.0 (pass-through)
Miscellaneous

  Features Auto on/off
  MTBF 15,000 hour(s)
  Compliant Standards DDC, DDC-2, DDC-2B
Manufacturer Warranty

  Service & Support Limited warranty - 2 years
Environmental Parameters

  Min Operating Temperature 32 °F
  Max Operating Temperature 104 °F
  Humidity Range Operating 5 - 90% (non-condensing)
