Product Details


All Categories  > Components & Accessories  > KVM  > KVM Console >  Black Box ServTray Complete KVT419A - KVM console - 19"

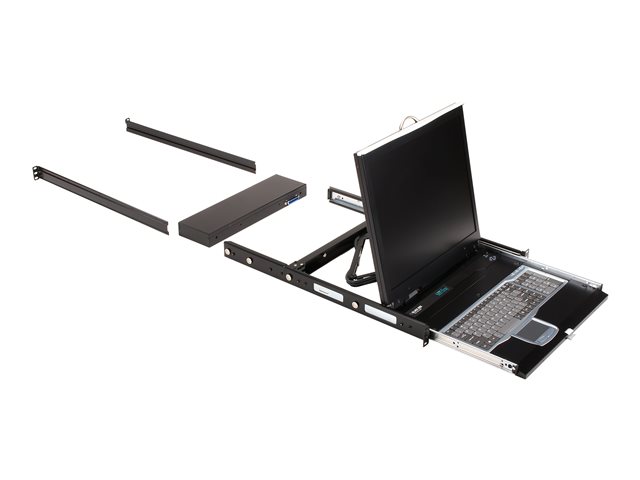

Main Product Image
Black Box
Black Box ServTray Complete KVT419A - KVM console - 19"
Install a rackmounted keyboard, monitor, and mouse together with a KVM switch module in 1U. The ServTray Complete adds an integral KVM switch to its keyboard monitor and mouse and packs it all into only 1U of rack space. It mounts on standard 19" rails in any standard server cabinets and enables you to manage VGA ports PS/2 or USB servers or a combination of the two. If you are looking for a way to make your server room even more functional without sacrificing valuable space you've found it. Save space increase efficiency Designed for heavy-duty use the ServTray Complete can replace that bulky local workstation you've been using. Just slide out the drawer and open the flat-screen monitor. The ServTray Complete features a full-sized 105-key keyboard- no trying to type on tiny keys too small for your fingertips. The touchpad mouse includes an ergonomic hand rest. When you're done simply slide it back in place. The front panel conceals the unit when not in use. Choose the size that's right for you. This ServTray Complete model comes with a 19" screen and an 8 port KVM switch module. Easy mounting The ServTray Complete includes a universal rear rail kit which mounts the ServTray on the front and rear rails with a depth of 23.7" to 45.3". That's rail depth not total cabinet depth so if you have extra deep cabinets the ServTray will still fit as long as the rail depth is within limits. Both ServTray and its switch module are powered through an autosensing 100- to 240-VAC power supply that plugs right into the nearest power strip or PDU.

Sku: GN2495
Price: $1,645.00





Part Number KVT419A-8UV-R2
SKU GN2495
UNSPSC Code 43211902
Returnable No
Usually Ships Call for Availability .
Billable Weight 44.26   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Manufacturer Warranty 1-year warranty
Compliant Standards UL, TUV, FCC, RoHS
Height (Rack Units) 1U
Voltage AC 120/230 V (50/60 Hz)
Input Connectors VGA
Color Support 262,144 colors
Contrast Ratio 500:1
Brightness 250 cd/m²
Pixel Pitch 0.294 mm
Native Resolution 1280 x 1024
Features Keyboard, touchpad
KVM Switch PS/2, USB - 8 ports
Device Type KVM console - 19"
Product Description Black Box ServTray Complete KVT419A - KVM console - 19"

Extended Specifications


General
  Display Type KVM console / TFT active matrix
  Diagonal Size 19"
  Native Resolution 1280 x 1024
  Pixel Pitch 0.294 mm
  Brightness 250 cd/m²
  Contrast Ratio 500:1
  Color Support 262,144 colors
  Vertical Refresh Rate 60 Hz
  Horizontal Viewing Angle +85 / -85
  Vertical Viewing Angle +85 / -85
  Backlight Technology CCFL
  Height (Rack Units) 1U
Input

  Type Keyboard, touchpad
KVM

  Type KVM switch - 8 ports
  Keyboard / Mouse Interface PS/2, USB
Connectivity

  Interfaces 8 x KVM (HD-15) ¦ VGA ¦ Keyboard (PS/2) ¦ Mouse (PS/2)
Miscellaneous

  Rack Mounting Kit Included
  Compliant Standards UL, TUV, FCC, RoHS
Power

  Power Supply External
  Input Voltage AC 120/230 V (50/60 Hz)
Software / System Requirements

  OS Required Microsoft Windows 98, Microsoft Windows 2000, Microsoft Windows NT, Microsoft Windows Millennium Edition, Microsoft Windows XP, Microsoft Windows 7, Microsoft Windows Vista
Manufacturer Warranty

  Service & Support Limited warranty - 1 year
Environmental Parameters

  Min Operating Temperature 32 °F
  Max Operating Temperature 122 °F
  Humidity Range Operating 0 - 95% (non-condensing)
