Product Details


All Categories  > Components & Accessories  > Power Protection Devices  > Rack-Mountable UPS >  APC Smart-UPS 2200VA LCD RM 2U - UPS - 1980 Watt - 2200 VA


Main Product Image
Schneider Electric

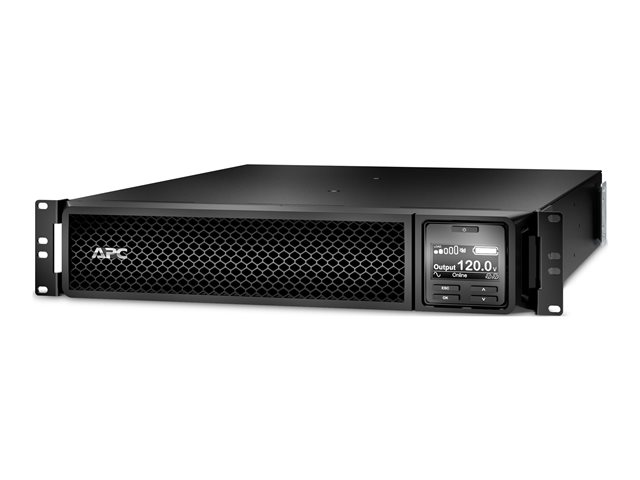

APC Smart-UPS 2200VA LCD RM 2U - UPS - 1980 Watt - 2200 VA
APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATMs. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.

Sku: EH7065
Price: $1,080.00





Part Number SMT2200R2X106
SKU EH7065
UNSPSC Code 39121011
Returnable Yes
Usually Ships Call for Availability .
Billable Weight 124.8   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Manufacturer Warranty 3-year warranty
Dimensions (WxDxH) 18.9 in x 26.9 in x 3.4 in
Color Black
Networking USB
Run Time (Up To) 5 min at full load
Batteries Qty 1
Battery Lead acid
Output connectors 6 x power NEMA 5-15 ¦ 2 x power NEMA 5-20
Input Connectors 1 x power NEMA L5-20
Power Capacity 1980 Watt / 2200 VA
Output Voltage AC 120 V
Input Voltage AC 120 V
Weight 93.28 lbs
Rack Size 2U
Device Type UPS - rack-mountable
Product Description APC Smart-UPS 2200VA LCD RM 2U - UPS - 1980 Watt - 2200 VA

Extended Specifications


General
  Device Type UPS - rack-mountable
  Height (Rack Units) 2U
  Color Black
Power Device

  UPS Technology Line interactive
  Input Voltage AC 120 V
  Input Voltage Range AC 82 - 143 V
  Input Voltage Range (Adjustable) AC 75 - 154 V
  Frequency Required 50/60 Hz
  Input Connectors 1 x power NEMA L5-20
  Power Output Connectors Details 6 x power NEMA 5-15 ¦ 2 x power NEMA 5-20
  Output Voltage AC 120 V
  Power Capacity 1980 Watt / 2200 VA
  Output Waveform Sinewave
  Surge Suppression Yes
  Surge Energy Rating 530 Joules
Battery

  Quantity 1
  Technology Lead acid
  Run Time (Up To) 5 min at full load ¦ 15 min at half load
  Recharge Time 3 hours
Networking

  Remote Management Interface USB
Expansion / Connectivity

  Interfaces 1 x management (USB) USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off) serial
  Expansion Slots 1 (total) / 1 (free) x SmartSlot
Miscellaneous

  Cables Included Power cable 8 ft
  Features Audible alarm, LCD display, LED indicators, cold-start function
  Compliant Standards CSA, UL 1778, FCC Part 15 A, REACH
Manufacturer Warranty

  Service & Support Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters

  Min Operating Temperature 32 °F
  Max Operating Temperature 104 °F
  Humidity Range Operating 0 - 95%
  Sound Emission 55 dBA
Dimensions & Weight

  Width 18.9 in
  Depth 26.9 in
  Height 3.4 in
  Weight 93.28 lbs
Dimensions & Weight (Shipping)

  Shipping Width 23.6 in
  Shipping Depth 38.6 in
  Shipping Height 10 in
  Shipping Weight 109.63 lbs
