All Categories  > Networking  > Hubs & Switches  > Gigabit Hubs & Switches >  Cisco Catalyst 9200 - Network Essentials - switch - 24 ports - smart - rack-mountable


Cisco

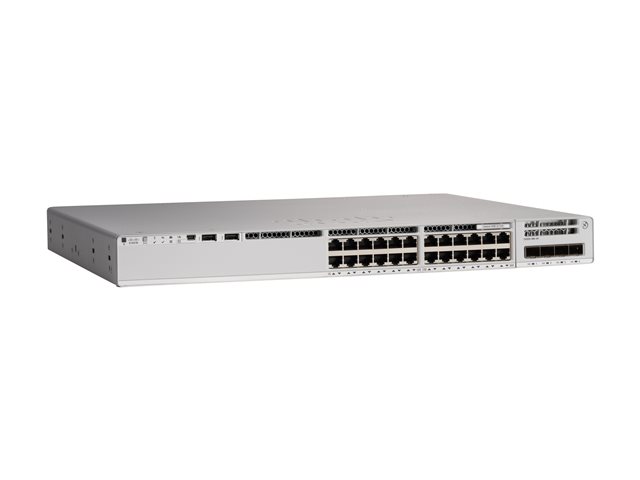

Cisco Catalyst 9200 - Network Essentials - switch - 24 ports - smart - rack-mountable
The Catalyst 9200 series delivers the superior features. It's highly secure and always on, and it provides IT simplicity, resulting in a great experience every time.

Sku: FG2227
Price: $3,091.00





Part Number C9200-24P-E
SKU FG2227
UNSPSC Code 43222612
Returnable Yes
Usually Ships Call for Availability .
Billable Weight 5.2   Lb
Quantity in Stock Call



Specifications
Label

Main Specifications

Manufacturer Warranty Limited lifetime warranty
Weight 12.13 lbs
Dimensions (WxDxH) 1.7 in x 17.5 in x 13.8 in
Power Redundancy Optional
Power AC 100-240 V (50 - 60 Hz)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
Features Cisco StackWise Technology, EIGRP Stub Routing, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Blue Beacon LED, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS
Remote Management Protocol NETCONF, RESTCONF
Routing Protocol OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng
Jumbo Frame Support 9198 bytes
MAC Address Table Size 32000 entries
Capacity Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ ACL scale entries: 1600 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
Performance Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps
Power Over Ethernet (PoE) PoE+
Ports 24 x 10/100/1000 (PoE+)
Subtype Gigabit Ethernet
Enclosure Type Rack-mountable
Device Type Switch - 24 ports - L3 - smart - stackable
Product Description Cisco Catalyst 9200 - Network Essentials - switch - 24 ports - smart - rack-mountable

Extended Specifications


General
  Device Type Switch - 24 ports - L3 - smart - stackable
  Enclosure Type Rack-mountable
  Subtype Gigabit Ethernet
  Ports 24 x 10/100/1000 (PoE+)
  Power Over Ethernet (PoE) PoE+
  Performance Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 128 Gbps ¦ Forwarding rate: 190.4 Mpps
  Capacity Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ ACL scale entries: 1600 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000
  MAC Address Table Size 32000 entries
  Jumbo Frame Support 9198 bytes
  Routing Protocol OSPF, RIP-1, RIP-2, VRRP, PIM-SSM, policy-based routing (PBR), RIPng
  Remote Management Protocol NETCONF, RESTCONF
  Encryption Algorithm 128-bit AES
  Features Cisco StackWise Technology, EIGRP Stub Routing, Flexible NetFlow (FNF), MACsec support, built-in ASIC, Control plane protection (CoPP), Blue Beacon LED, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, DNA support, Superior QoS
  Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3bz
  RAM 4 GB
  Flash Memory 4 GB
  Built-in Devices RFID tag
Expansion / Connectivity
  Interfaces 24 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
Power
  Power Device Internal power supply - hot-plug
  Max Supported Qty 2
  Power Redundancy Optional
  Voltage Required AC 100-240 V (50 - 60 Hz)
Miscellaneous
  MTBF 422,310 hours
  Compliant Standards Plug and Play, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Software / System Requirements
  Software Included Cisco Network Essentials
Dimensions & Weight
  Width 1.7 in
  Depth 17.5 in
  Height 13.8 in
  Weight 12.13 lbs
Manufacturer Warranty
  Service & Support Limited warranty - advance parts replacement - lifetime - response time: next business day
Environmental Parameters
  Humidity Range Operating 5 - 90% (non-condensing)
  Min Storage Temperature -40 °F
  Max Storage Temperature 158 °F
  Humidity Range Storage 5 - 90% (non-condensing)
