Product Overview
Label
![]()
Specifications
Label
![]()
|
| | | |
| Manufacturer Warranty |
| Limited lifetime warranty |
| Weight |
| 3.37 lbs |
| Dimensions (WxDxH) |
| 10.6 in x 7.3 in x 1.7 in |
| Power |
| AC 100-240 V (50 - 60 Hz) |
| Compliant Standards |
| IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
| Features |
| Fanless, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button |
| Remote Management Protocol |
| CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS |
| Routing Protocol |
| STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2, Bounjour |
| Jumbo Frame Support |
| 9000 bytes |
| MAC Address Table Size |
| 16000 entries |
| Capacity |
| MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
| Performance |
| Forwarding rate (64-byte packets): 14.88 Mpps ¦ Switching capacity: 20 Gbps |
| PoE Budget |
| 60 W |
| Power Over Ethernet (PoE) |
| PoE+ |
| Ports |
| 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP/RJ-45 |
| Subtype |
| Gigabit Ethernet |
| Enclosure Type |
| Rack-mountable |
| Device Type |
| Switch - 8 ports - L3 - managed |
| Product Description |

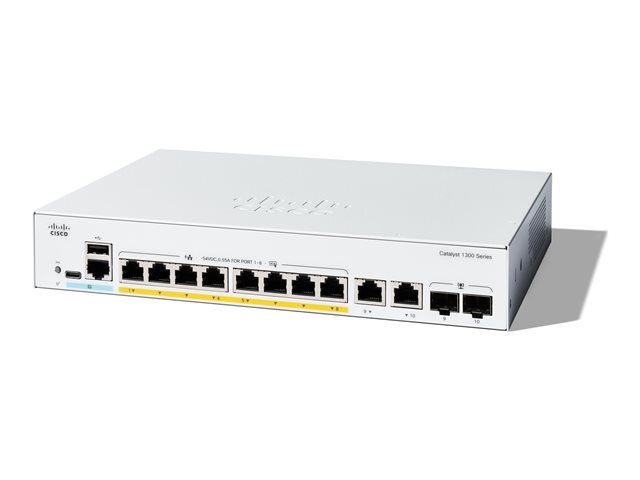

| Cisco Catalyst 1300-8P-E-2G - switch - 8 ports - managed - rack-mountable |
|
|
|
| | | |
|
| |
| Device Type |
| Switch - 8 ports - L3 - managed |
| Enclosure Type |
| Rack-mountable |
| Subtype |
| Gigabit Ethernet |
| Ports |
| 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP/RJ-45 |
| Power Over Ethernet (PoE) |
| PoE+ |
| PoE Budget |
| 60 W |
| Performance |
| Forwarding rate (64-byte packets): 14.88 Mpps ¦ Switching capacity: 20 Gbps |
| Capacity |
| MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
| MAC Address Table Size |
| 16000 entries |
| Jumbo Frame Support |
| 9000 bytes |
| Routing Protocol |
| STP, static IP routing, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, CIDR, RIP-2, policy-based routing (PBR), MLD, MLDv2, Bounjour |
| Remote Management Protocol |
| CLI, SNMP, Telnet, SSH, SSH-2, DHCP, SCP, HTTPS, HTTP, ICMP, TFTP, Syslog, SNMP 2c, SNMP 3, RMON, RADIUS |
| Encryption Algorithm |
| SSL, MD5 |
| Authentication Method |
| RADIUS, TACACS+ |
| Features |
| Fanless, VLAN support, STP support, CLI management, ATP, FHS, QoS, sFlow, dynamic routing, Zero-Touch Deployment, Port Security, Web authentication, Address Resolution Protocol, ARP inspection, IP source guard, DHCP snooping, IPMB, NDP, router advertisement guard, DHCPv6 guard, layer 3 routing, LAG, port mirroring, eco-friendly button, EEE, RSTP, MSTP support, PVST+, RPVST+, LACP, Protocol-based VLANs support, MAC based VLAN, VLAN management, Private VLAN, PVE, Guest VLAN, GVRP, CPE VLAN, Auto Surveillance VLAN, MVR, Q-in-Q tunneling, TPID, GARP, UDLD, DHCP relay, DHCP server, IGMP snooping, IGMP querier, IGMP proxy, HoL Blocking Prevention, loopback detection, ACL support, BOOTP support, UDP, High Availability, MAC address authentication, BPDU Guard, STP Root Guard, STP loop guard, DAI, DoS protection, SCT, SSD, trustworthy systems, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DoS attack prevention, WRR, ToS, DSCP based CoS, DiffServ support, TCP congestion, iSCSI traffic optimization, path MTU discovery, DAD, RA guard, MLD snooping, MLD proxy, Telnet server, DNS client, Telnet client, DHCP client, Cisco NG PnP Protocol, IPv4 and IPv6 dual stack, VLAN mirroring, RSPAN, SCP, chip guard, boot integrity, persistent PoE, PoE scheduling, time-based port operation, cable length detection, LLDP, LLDP-MED, reset button |
| Compliant Standards |
| IEEE 802.1x, IEEE 802.3az, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
| Processor |
| X ARM: 1.4 GHz |
| RAM |
| 1 GB DDR4 SDRAM |
| Flash Memory |
| 512 MB |
| Status Indicators |
| System, link/activity/speed, PoE |
|
| |
| Interfaces |
| 8 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 2 x 1000Base-X RJ-45/SFP ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
|
| |
| Power Device |
| External power adapter |
| Voltage Required |
| AC 100-240 V (50 - 60 Hz) |
|
| |
| Included Accessories |
| Pointer card, mounting kit |
| MTBF |
| 1,706,649 hours |
| Compliant Standards |
| Plug and Play, RFC768, RFC783, RFC791, RFC792, RFC793, RFC813, RFC826, RFC879, RFC896, RFC854, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC951, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1157, RFC1213, RFC1215, RFC1286, RFC1350, RFC1442, RFC1451, RFC1493, RFC1533, RFC1541, RFC1542, RFC1573, RFC1624, RFC1643, RFC1700, RFC1757, RFC1867, RFC1907, RFC2011, RFC2012, RFC2013, RFC2030, RFC2131, RFC2132, RFC2233, RFC2576, RFC2616, RFC2618, RFC2665, RFC2666, RFC2674, RFC2737, RFC2819, RFC2863, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4443, RFC4291, RFC2460, RFC4861, RFC4862, RFC1981, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595, CSA 22.2, FCC CFR47 Part 15, UL 62368, WEEE |
|
| |
| Width |
| 10.6 in |
| Depth |
| 7.3 in |
| Height |
| 1.7 in |
| Weight |
| 3.37 lbs |
|
| |
| Service & Support |
| Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
|
| |
| Min Operating Temperature |
| 23 °F |
| Max Operating Temperature |
| 122 °F |
| Humidity Range Operating |
| 5 - 90% RH (non-condensing) |
| Min Storage Temperature |
| -13 °F |
| Max Storage Temperature |
| 158 °F |
| Humidity Range Storage |
| 5 - 90% RH (non-condensing) |
|
